Boat Portholes

High quality fixed Brass Porthole Frames, machined from solid brass, these portholes are then highly polished, pre-drilled and countersunk ready for easy fitting. Glass not included.

Dimensions (approx)
8 Inch
Outer diameter: 258mm (10⅛")
Inner diameter: 191mm (7½")
Glass size: 210mm (8¼")
Weight: 1.18kg

---

9 Inch
Outer diameter: 283mm (11⅛")
Inner diameter: 220mm (8 ⅝")
Glass size: 237mm
Weight: 1.2kg

---

11 Inch
Outer diameter: 348mm (13¾")
Inner diameter: 273mm (10¾")
Glass size: 292mm (11½")
Weight: 1.58kg

---

14 Inch
Outer diameter: 425mm (16¾")
Inner diameter: 343mm (13½")
Glass size: 368mm (14½")
Weight: 2.06kg

Please Note this product was a special commission for a client who built narrow boats.

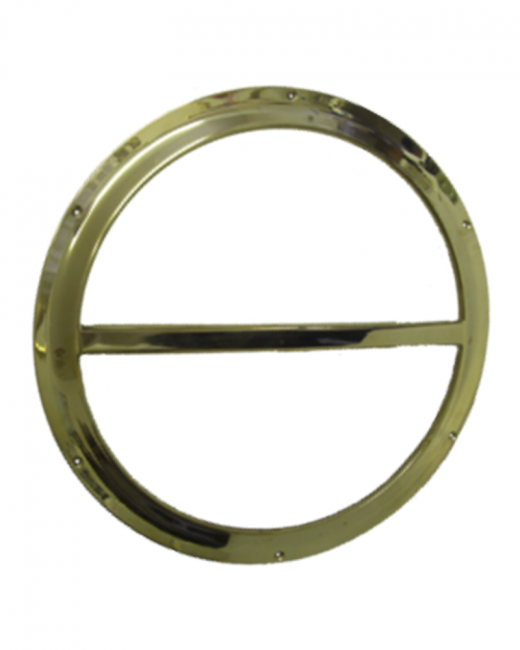

This Brass Opening Porthole is a quality product in highly polished solid brass, made to our usual high standard. This porthole can be used as a fixed porthole also.
If you are interested in ordering this product or require details of any of our extensive product list of marine chandlery items please phone our Sales Department on 01691 610952.

Trade orders only

Dimensions:
Inner dia: 350mm (13¾"), outer dia: 425mm (16¾"), depth: 25mm (1") approx. Weight: 3.430kgs approx.

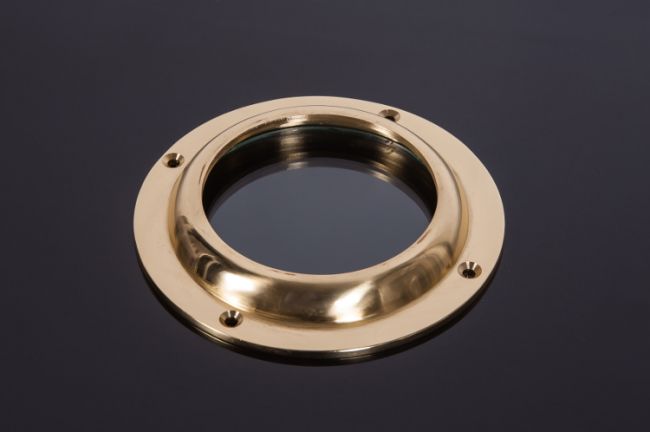

Solid brass Pigeon Port Frame, engine compartment observation window, makes great mini-portholes. Available in polished brass lacquered and bright chrome finishes.

These Come With The Toughen Glass Included

Dimensions
Diameter = 110mm (4.3")
Glass Size = 80mm (3.1")
Viewing Size = 68mm (2.7")
Weight (inc Glass) = 227grms

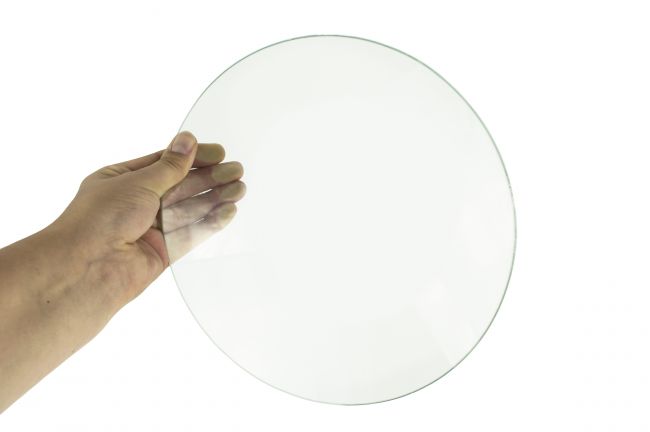

Clear Porthole Glass (only) 6mm (¼") thick. To fit various sizes of portholes. Glass supplied cut to size. Our port hole glass is manufactured to BS857.

limited availability

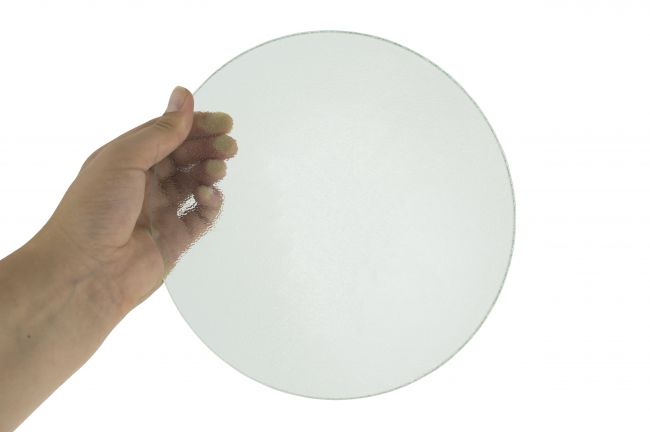

Obscurred Porthole Glass (only) 6mm (¼") thick. Available in a variety of sizes, cut to size. Our port hole glass is manufactured to BS857.

A solid cast brass Porthole Window Catch for narrowboats and other applications. Black powder coat finish, supplied complete with a yellow passivated fine thread screw.

Dimensions:
Lenght: 70mm (2¾"), Width: 18mm (¾"), Weight 67g approx.

Other finishes may be available for large, or trade orders, please call 01691 610952 for more information.

All the equipment you need to make a porthole in a solid wood door. The Solid Brass Door Porthole Kit consists of 2 solid brass porthole frames complete with fixing screws and two sheets of clear glass to fit. All you need add is a bit of know how and a steady hand to cut out the circular hole. Remember measure twice cut once!
Our port hole glass is manufactured to BS857.

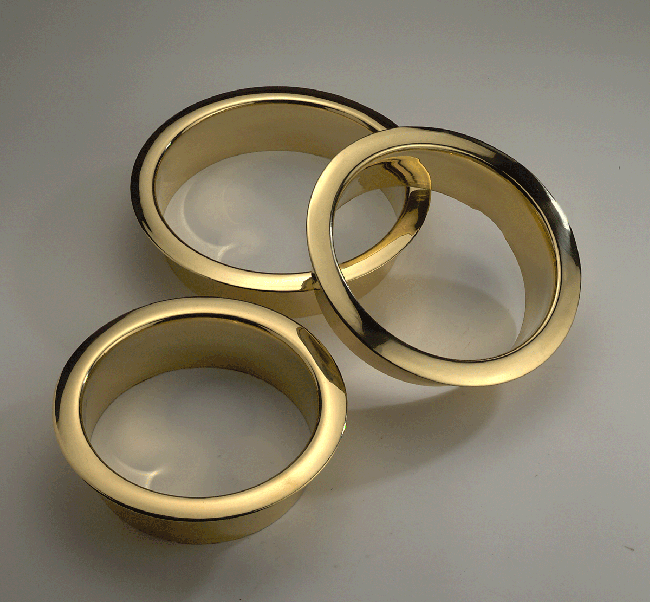

Made from spun solid brass these Polished Brass Porthole Liners will add that professional finishing touch to your portholes. Don’t forget we have stocks of porthole frames and porthole glass, so you can completely renovate your narrowboat.

Dimensions:
190mm Inner dia: 190mm (7½"), outer dia: 241mm (9½"), depth: 63mm (2½") approx.
203mm Inner dia: 203mm (8"), outer dia: 254mm (10"), depth: 63mm (2½") approx.
228mm Inner dia: 228mm (9"), outer dia: 280mm (11"), depth: 63mm (2½") approx. Weight: 300g approx.
280mm Inner dia: 280mm (11"), outer dia: 330mm (13"), depth: 63mm (2½") approx. Weight: 710g approx.
355mm Inner dia: 355mm (14"), outer dia: 400mm (15¾"), depth: 63mm (2½") approx. Weight: 860g approx.

High quality fixed Brass Porthole Frame, machined from solid brass and the Chrome plated, these portholes are then highly polished, pre-drilled and countersunk ready for easy fitting.

Glass not included.

Made from spun solid brass and the Chrome Plated these porthole liners will add that professional finishing touch to your portholes.

Don’t forget we have stocks of porthole frames and porthole glass, so you can completely renovate your narrowboat.

Dimensions
190mm Inner dia: 190mm (7½"), outer dia: 241mm (9½"), depth: 63mm (2½") approx.
203mm Inner dia: 203mm (8"), outer dia: 254mm (10"), depth: 63mm (2½") approx.
228mm Inner dia: 228mm (9"), outer dia: 280mm (11"), depth: 63mm (2½") approx. Weight: 300g approx.
280mm Inner dia: 280mm (11"), outer dia: 330mm (13"), depth: 63mm (2½") approx. Weight: 710g approx.
355mm Inner dia: 355mm (14"), outer dia: 400mm (15¾"), depth: 63mm (2½") approx. Weight: 860g approx.
