Conservatory Components

We can provide a wide range of conservatory roofing components for the building of aluminium, wood or uPVC conservatories, sunrooms and garden rooms.

Made from a variety of the finest materials including, steel, brass or aluminium and available in a range of different colours and finishes, our range includes apex brackets, centre bosses, tie bars and cornices.

If you are looking for a different component in a large volume, we can design and construct bespoke items. Please call our sales team for further details.

"We produce primarily for the trade, all components are made to the customers specification."
Clive Knowles
Managing Director



Set Descending Direction

Items 1 to 10 of 18 total

  1. 1
  2. 2

List Grid

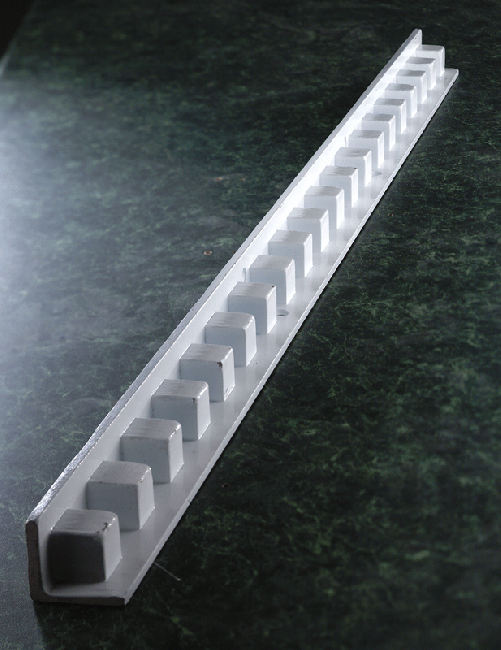

  1. Square Design Cornice

    Part Number: cornice1

    This Square Design Cornice or sometimes called dental moulding, is made from aluminium to order, for details of price and availability please contact our sales team.

    "WE WELCOME TRADE ENQUIRIES ON THIS PRODUCT"

  2. Aluminium Tie Bar Centre Boss

    Normal Price: £22.99

    Special Price: £19.54

    Only 1 remaining available

    Part Number: Aluminium Tie Bar Centre Boss

    Aluminium Tie Bar Centre Boss - hand cast with cover plates, screw fixing, 3 way. Standard (M10 fittings). Available in polished aluminium, brown and white finishes.

    Dimensions (approx)
    Height: 152mm (6")
    Width: 165mm (6½")
    Depth: 45mm (1¾")
    Weight: 620g

    Click & Collect Here
    Click & Collect Here
    in stock

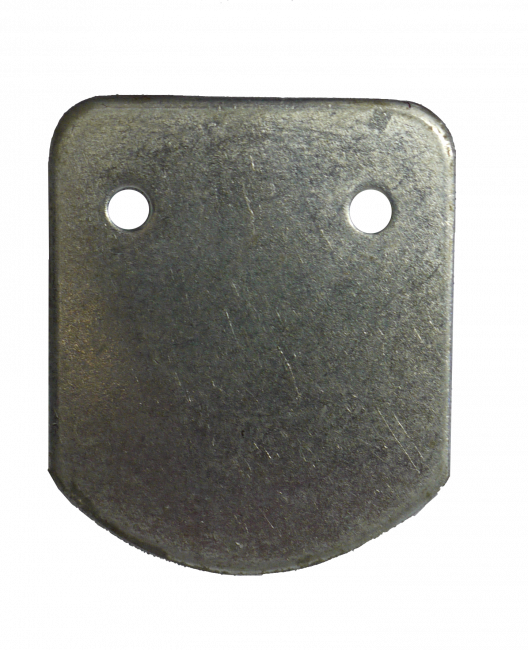

  3. Galvanised Steel Fixing Plate

    £0.49

    Part Number: MI032/GAL

    Galvanised Steel Fixing PlateShaped steel plate for conservatory fixing. pre-drilled with two 4mm holes, and galvanised for a long life.

    Dimensions (approx)
    Height: 45mm (1¾")
    Width: 38mm (1½")
    Thickness: 1.5mm
    Weight: 20g

    Discounts available for large volume orders!

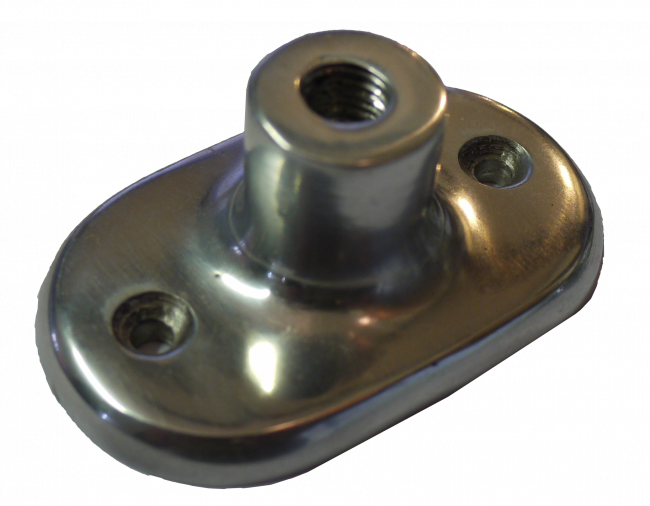

  4. Top Tie Bar Connector in Aluminium

    £4.25

    Part Number: CP220

    Top Tie Bar Connector in Aluminium, modern styled conservatory connector, threaded to accept standard tie bars. This connector is supplied with two countersunk fixing holes for a neat finish. Solid aluminium construction, available in brown or white finish, or a polished aluminium finish.

    Dimensions approx:
    Threading: 10mm
    Height: 44mm (1½")
    width: 70mm (2¾")
    projection: 28mm (1⅛")
    Weight: 60g

  5. Elongated Conservatory Bracket Horizontal

    Normal Price: £7.50

    Special Price: £6.38

    Part Number: CP007/PA

    This aluminium Elongated Conservatory Bracket Horizontal comes in a polished aluminium finish with a 9mm hole drilled through the upright. Also available in brown and white finishes. Four countersunk fixing holes.

    Dimensions (approx)
    Length: 120mm (4¾")
    Width: 51mm (2")
    Depth: (1¾")
    Weight: 130g

    Click & Collect Here
    Click & Collect Here
    in stock

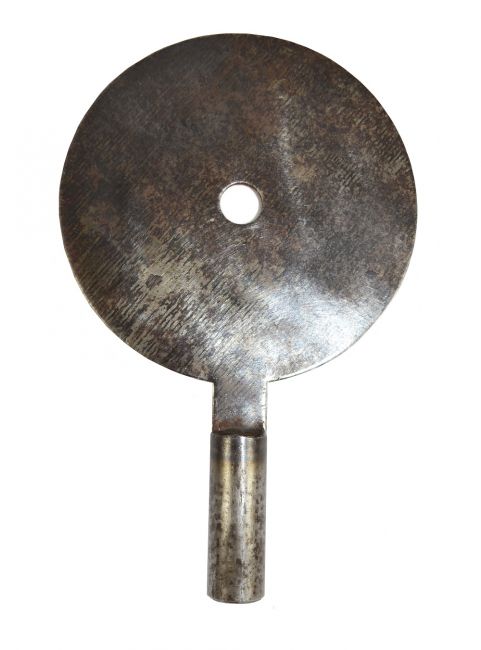

  6. Steel Tie Bar Centre Boss Lollipop

    £4.99

    Part Number: CP055/PA

    Steel Tie Bar Centre Boss Lollipophand cast with a steel tube (M10) threaded bar connector. Available in brown or white finish or a polished aluminium finish.

    Dimensions (approx)
    Total height: 158mm (6¼”)
    Diameter: 98mm (3⅞”)
    Tube diameter: 16mm (⅝”)
    Weight: 150g

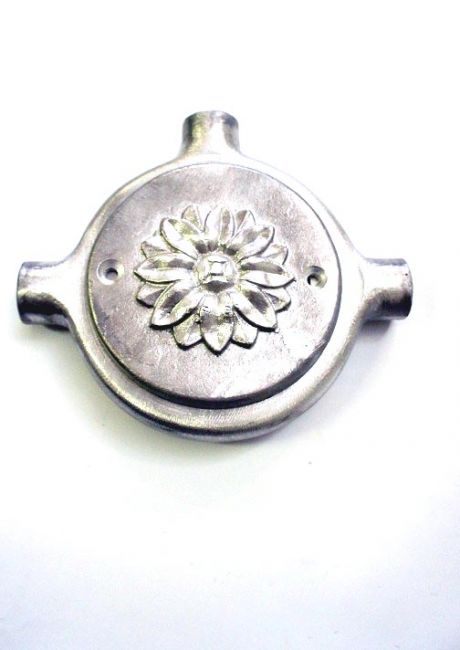

  7. Aluminium Tie Bar Centre Boss - Daisy Design

    £18.99

    Part Number: CP052/PA

    Aluminium Tie Bar Centre Boss - Daisy Design hand cast with cover plates, screw fixing, 3 way. Standard (M10 fittings). Available in polished aluminium, brown and white finishes.

    Dimensions (approx)
    Height: 152mm (6")
    Width: 165mm (6½")
    Depth: 45mm (1¾")
    Weight: 620g

  8. Aluminium Tie Bar Centre Boss - Sunflower

    £18.99

    Part Number: CP053

    Aluminium Tie Bar Centre Boss - Sunflower hand cast with cover plates, screw fixing, 3 way. Standard (M10) fittings. Available in polished aluminium, brown and white finishes.

    Trade Enquiries only

    Dimensions (approx)
    Height: 152mm (6")
    Width: 165mm (6½")
    Depth: 45mm (1¾")
    Weight: 620g

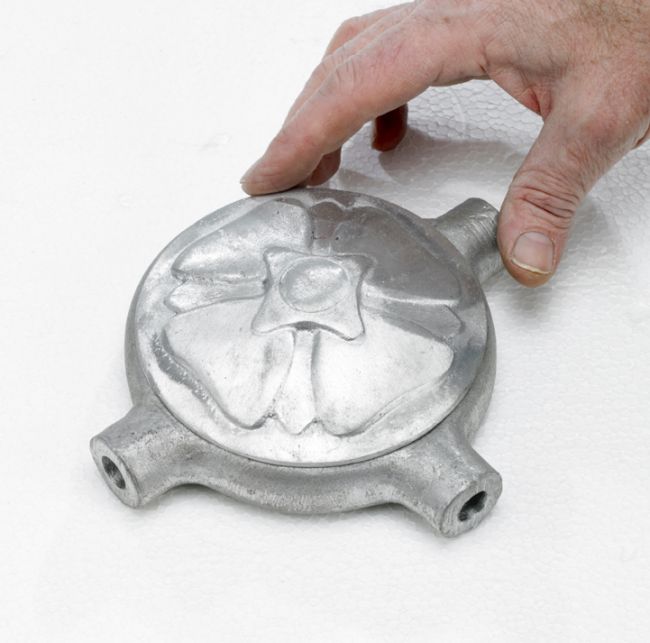

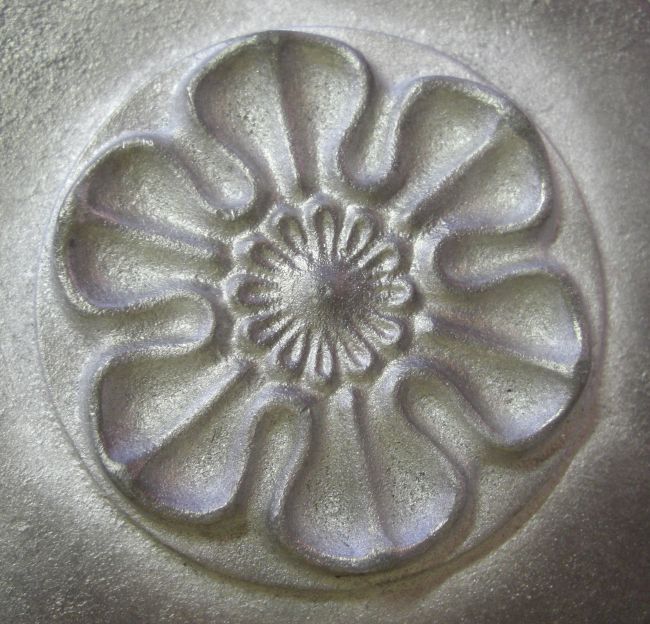

  9. Aluminium Tie Bar Centre Boss - Tudor Rose

    Normal Price: £18.99

    Special Price: £16.14

    Part Number: CP051

    Dimensions (Approximate)
    Height: 152mm (6")
    Width: 165mm (6½")
    Depth: 45mm (1¾")
    Weight: 620g

    Aluminium Tie Bar Centre Boss - Tudor Rose hand cast with cover plates, screw fixing, 3 way. Standard (M10 fittings). Available in polished aluminium, brown and white finishes.

    Dimensions (approx)
    Height: 152mm (6")
    Width: 165mm (6½")
    Depth: 45mm (1¾")
    Weight: 620g

    Click & Collect Here
    Click & Collect Here
    in stock

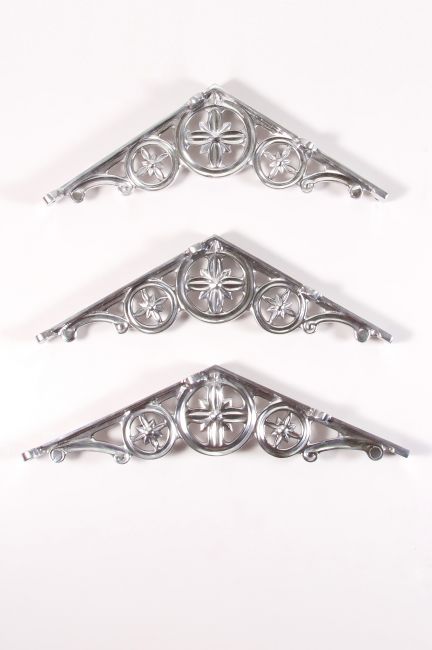

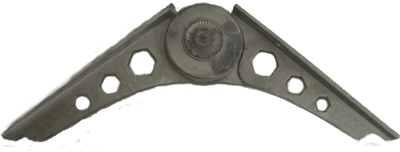

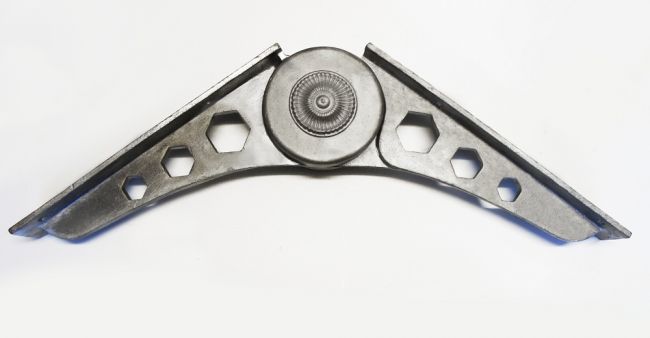

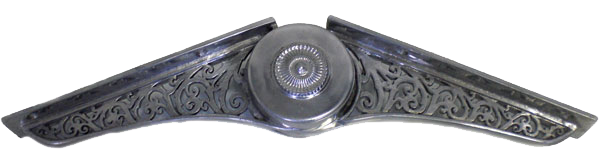

  10. Ornate Adjustable Tie Bar Bracket (Trade Only)

    £39.99

    Part Number: CP102/PA

    Ornate Adjustable Tie Bar Bracket (Trade Only), complete kit comprising, adjustable brackets with sunflower design covers. Brackets have very ornate fretwork and are pre-drilled for fixing. Tie bar lollipops available separately. Very high polished finish.

    Dimensions (approx)
    Total length: 540mm (21¼")
    Bracket lengths: 267mm (10½")
    Width: 66mm (2⅝")
    Depth: 114mm (4½")
    Weight: 1.320kg
