Catalogue>Hardware Catalogue>Conservatory Fittings>

Displaying 1-18 of 18 Products. Page:

Conservatory Components

We can provide a wide range of conservatory roofing components for the building of aluminium, wood or uPVC conservatories, sunrooms and garden rooms.

Made from a variety of the finest materials including, steel, brass or aluminium and available in a range of different colours and finishes, our range includes apex brackets, centre bosses, tie bars and cornices.

If you are looking for a different component in a large volume, we can design and construct bespoke items. Please call our sales team for further details.

"We produce primarily for the trade, all components are made to the customers specification."
Clive Knowles
Managing Director

All prices Include VAT at 20%

Elongated Conservatory Bracket Horizontal

Part Number: CP002

This aluminium Elongated Conservatory Bracket Horizontal comes in a polished aluminium finish with a 9mm hole drilled through the upright. Also available in brown and white finishes. Four countersunk fixing holes.

Dimensions:
Length: 120mm (4¾"), width: 51mm (2"), depth: (1¾") approx. Weight: 130g approx.

Finish
Brown finish	£4.59each
White finish	£4.59each
Polished Aluminium	£4.07each

Elongated Conservatory Bracket Inline version

Part Number: CP008

This aluminium Elongated Conservatory Bracket comes in a polished finish with a 9mm hole drilled through the upright. Also available in brown and white finishes.

Dimensions:
Length: 127mm (5"), width: 51mm (2"), depth: (1¾") approx.

Finish
Brown Finish	£6.63each
White Finish	£6.63each
Polished Aluminium	£5.34each

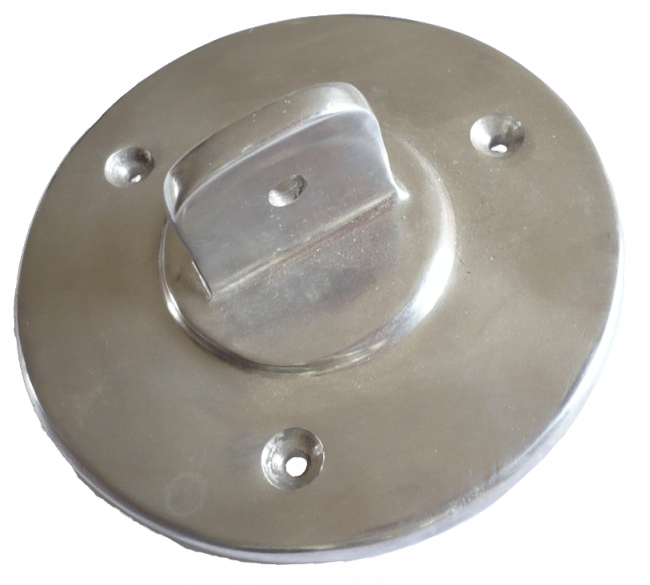

Round Conservatory Bracket

Part Number: CP011

This aluminium Round Conservatory Bracket comes in a polished finish with three fixing holes. The centre upright comes with a 8.5mm hole drilled through it. This tie bar backet is also availble in brown and white finishes.

Dimensions:
Diameter: 152mm (6"), depth: 60mm (2¼") approx.

Finish
Brown Finish	£13.99each
White Finish	£13.99each
Polished Aluminium	£12.99each

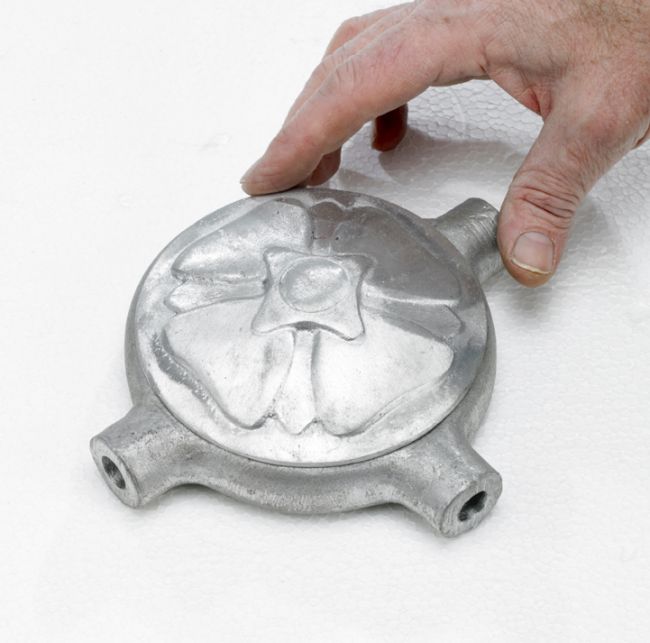

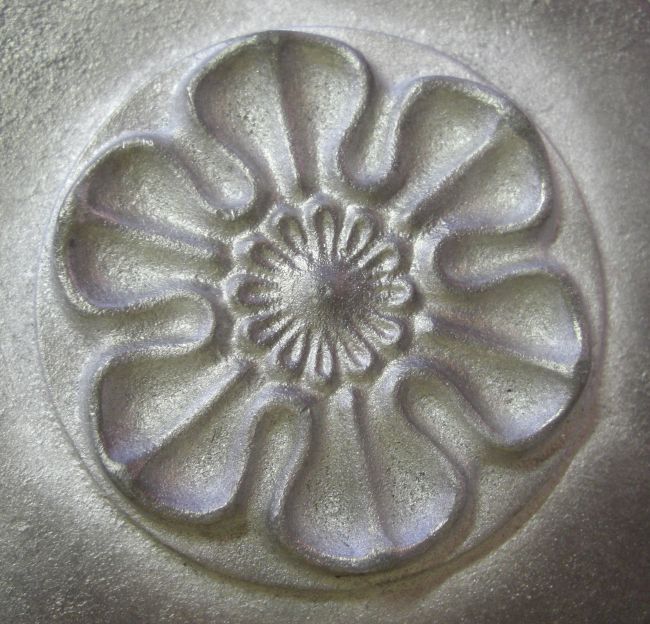

Aluminium Tie Bar Centre Boss - Tudor Rose

Part Number: CP051

Aluminium Tie Bar Centre Boss - Tudor Rose hand cast with cover plates, screw fixing, 3 way. Standard (M10 fittings). Available in polished aluminium, brown and white finishes.

Dimensions:
Height: 152mm (6"), width: 165mm (6½"), depth: 45mm (1¾") approx. Weight: 620g approx.

Finish
Brown Finish	£22.99each
White Finish	£21.99each
Polished Aluminium	£18.99each

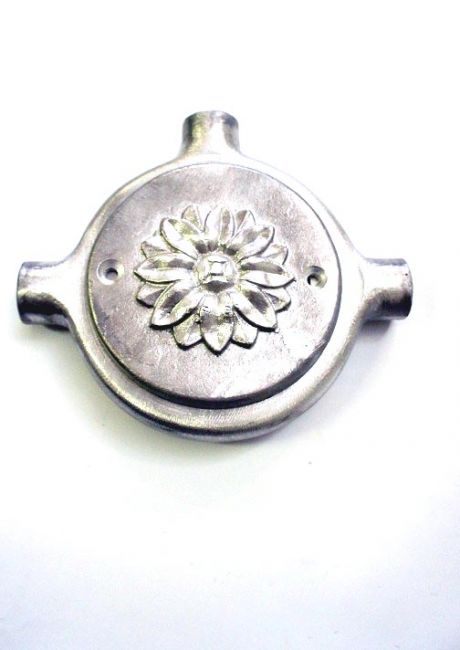

Aluminium Tie Bar Centre Boss - Daisy Design

Part Number: CP052

Aluminium Tie Bar Centre Boss - Daisy Design hand cast with cover plates, screw fixing, 3 way. Standard (M10 fittings). Available in polished aluminium, brown and white finishes.

Dimensions:
Height: 152mm (6"), width: 165mm (6½"), depth: 45mm (1¾") approx. Weight: 620g approx.

Finish
Brown Finish	£22.99each
White Finish	£21.99each
Polished Aluminium	£18.99each

Aluminium Tie Bar Centre Boss - Sunflower

Part Number: CP053

Aluminium Tie Bar Centre Boss - Sunflower hand cast with cover plates, screw fixing, 3 way. Standard (M10) fittings. Available in polished aluminium, brown and white finishes.

Dimensions:
Height: 152mm (6"), width: 165mm (6½"), depth: 45mm (1¾") approx. Weight: 620g approx.

Finish
Brown Finish	£22.99each
White Finish	£21.99each
Polished Aluminium	£18.99each

Conservatory Tie Bar Bracket

Part Number: CP054

This aluminium Conservatory Tie Bar Bracket comes in a polished finish with an adjustable screw thread fixed in the centre. Screw thread diameter is approximately 10mm (M10). This bracket is also available in brown and white finishes.

Dimensions:
Length: 152mm (6"), width: 51mm (2"), depth: 39mm (1½") approx.

Finish
Brown Finish	£12.99each
White Finish	£12.99each
Polished Aluminium	£9.99each

Adjustable Aluminium Tie Bar Bracket Tudor Rose

Part Number: CP100

Adjustable Aluminium Tie Bar Bracket Tudor Rose, complete kit comprising, adjustable brackets with tudor rose design covers. Brackets have diamond design cut-outs and are pre-drilled for fixing. Tie bar lollipops available separately. Also available in brown and white finishes.

Dimensions:
Total length: 540mm (21¼"), bracket lengths: 267mm (10½"), width: 66mm (2⅝"), depth: 114mm (4½") approx. Weight: 1.340kgs approx.

To see a video of how the adjustable tie bar bracket works please click here.

Finish
Brown Powder Coat	£40.99each
White Powder Coat	£40.99each
Natural Aluminium	£30.99each

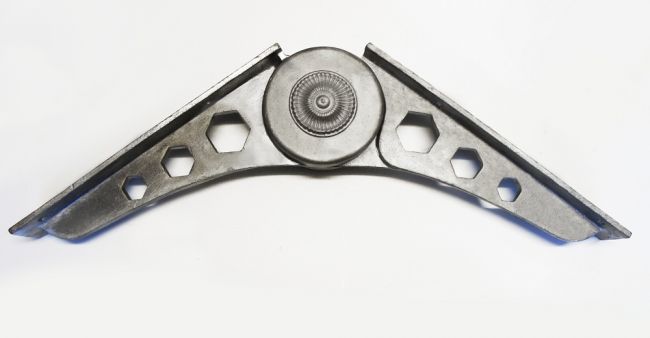

Adjustable Aluminium Tie Bar Bracket Sunflower

Part Number: CP101

Adjustable Aluminium Tie Bar Bracket Sunflower, complete kit comprising, adjustable brackets with sunflower design covers. Brackets have hexagonal cut-outs and are pre-drilled for fixing. Tie bar lollipops available separately.

Dimensions:
Total length: 540mm (21¼"), bracket lengths: 267mm (10½"), width: 66mm (2⅝"), depth: 114mm (4½") approx. Weight: 1.340kgs approx.

To see a video of how the adjustable tie bar bracket works please click here.

Finish
Brown Powder Coat	£40.99each
White Powder Coat	£40.99each
Natural Aluminium	£30.99each

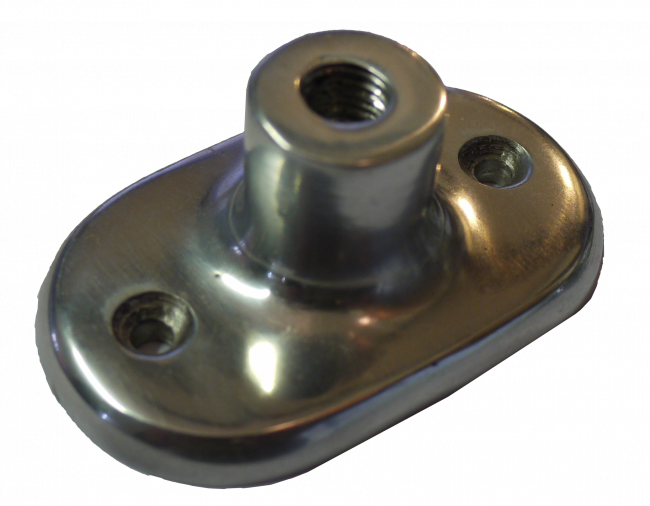

Top Tie Bar Connector in Aluminium

Part Number: CP220

Top Tie Bar Connector in Aluminium, modern styled conservatory connector, threaded to accept standard tie bars. This connector is supplied with two countersunk fixing holes for a neat finish. Solid aluminium construction, available in brown or white finish, or a polished aluminium finish.

Dimensions approx:
Threading: 10mm
Height: 44mm (1½")
width: 70mm (2¾")
projection: 28mm (1⅛")
Weight: 60g

Finish
Brown Finish	£6.12each
White Finish	£6.12each
Polished Aluminium	£5.10each

Aluminium Tie Bar Centre Boss

Aluminium Tie Bar Centre Boss - hand cast with cover plates, screw fixing, 3 way. Standard (M10 fittings). Available in polished aluminium, brown and white finishes.

Dimensions:
Height: 152mm (6"), width: 165mm (6½"), depth: 45mm (1¾") approx. Weight: 620g approx.

Finish
Brown Powder Coat	£22.99
White Powder Coat	£21.99
Natural Aluminium	£18.99

Triangular Design Dental Mouldings

Part Number: cornice2

This Triangular Design Dental Mouldings , or sometimes called Triangular Design Cornice is made from aluminium to order, for details of trade discounts and availability please contact our sales team.

"WE WELCOME TRADE ENQUIRIES ON THIS PRODUCT"

Finish
White Finish	£22.99each
Polished Aluminium	£20.99each

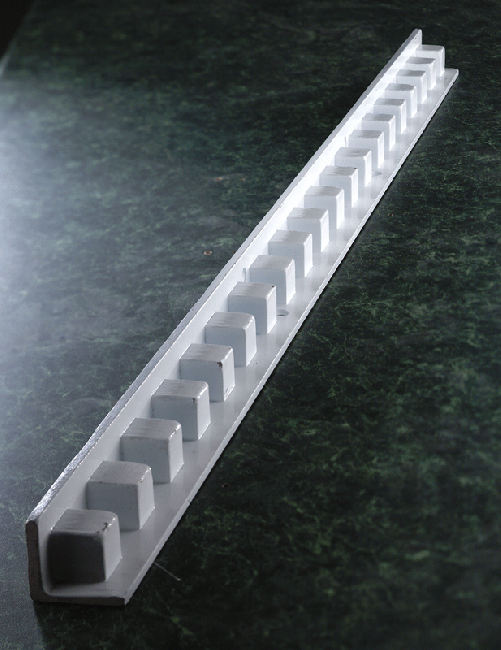

Square Design Cornice

Part Number: cornice1

This Square Design Cornice or sometimes called dental moulding, is made from aluminium to order, for details of price and availability please contact our sales team.

"WE WELCOME TRADE ENQUIRIES ON THIS PRODUCT"
